  • Description of Syrup Liquid Filling Production Line
  • Technical Data for Syrup Liquid Filling Production Line

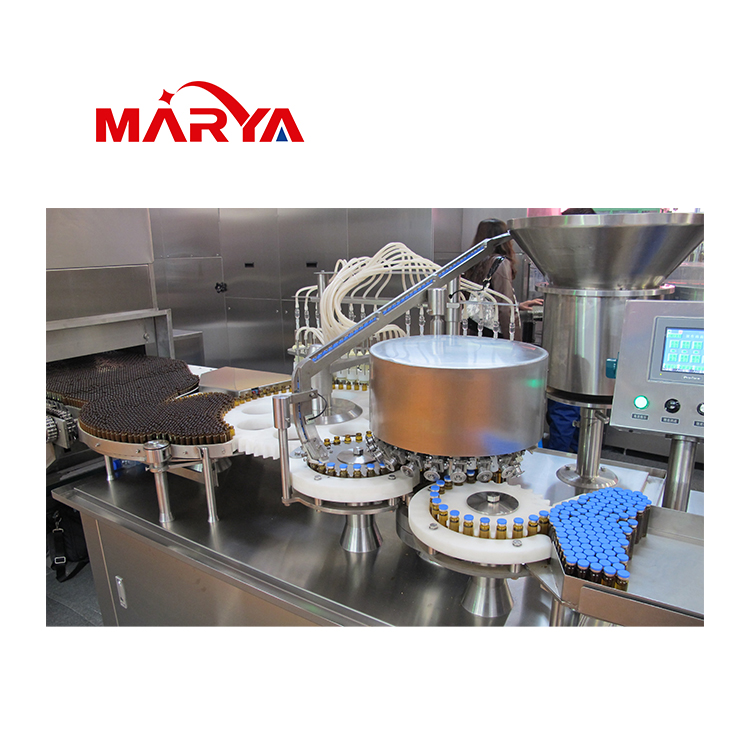

This automatic syrup liquid filling production line is suitable for filling, stoppering and capping for pharmaceutical oral liquid and syrup bottles, including small volume human oral liquid and large dose veterinary medicine. Both plastic bottles(without hot air sterilization tunnel) and glass bottles are applicable with this liquid syrup filling production line.

The whole automatic syrup liquid filling production line consists of Ultrasonic Washing Machine, Hot air circulation Drying Sterlization Tunnel, Filling and Capping Machine. This pharmaceutical bottle filling line has very high filling precision and can change size parts easily, totally complying with the new GMP standard.


1.Suitable bottle range: plastic or glass bottles, 5-30 ml small dosage, 30-1000 ml large dosage

2.Filling error: 95+/-2%

3.Auto stoppering rate: 99%

4.Power supply: 220V / 380V 50Hz

5.Power: 2kw

6.Vacuum degree: -6 x 102 Mpa 20 m3/h

7.Compressed air pressure: 0.3-0.4 Mpa 20 m3/h

8.Filling head: 6/8, 8/16

9.Output: 50-200 bpm for large dosage, 100-400 bpm for small dosage

10.Total weight: about 8500kg

11.Dimensions: 9200 x 2200 x 2245 mm
